Feature of Soil Bucket

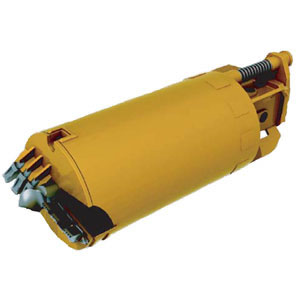

The soil bucket is perfectly fit for the Kelly drilling in foundation technology, which consisted of the Kelly box, cylinder, bottom plate & door, opening device, wear parts and pilot.

Appliance
Suitable for Clay, limestone, silt, sand and gravel soil conditions etc

Single bottom double cut soil bucket

Double bottom single cut soil bucket

Double bottom double cut soil bucket

Centrifugal soil bucket

Clean out bucket with double cutting edge

Centrifugal soil bucket

Clean out bucket with single cutting edge

Double bottom double cut soil bucket with collar plate

Soil Bucket

Tool type
1. Single bottom or double bottom
2. Single cutting edge or double cutting edge, (cutting edge with flat teeth normally)
3. With or without collar plate with chisel at side

Tool dimensions

Diameter(mm)	Casing Specifications	Cyl. Thickness(mm)	Bottom thickness(mm)	Height(mm)	Weight(kg)
520	620/540	12	40	1470	685
600	750/670	12	40	1470	780
780	880/800	16	40	1470	1015
900	1000/920	16	40	1470	1165
1000	1180/1100	16	50	1470	1220
1060	1180/1100	16	50	1470	1300
1180	1300/1220	16	50	1470	1815
1350	1500/1400	16	50	1470	2115
1500	1650/1550	16	50	1270	2850
1800	2000/1880	16	50	1270	3450

Huanli Industries is a professional manufacturer and supplier of soil bucket in China. We offer a variety of manufacture piling tools, such as rock auger, rock bucket, soil auger, soil bucket, core barrel, belling auger, casing tube, CFA auger, and kelly bar ect. We possess 19 years’ experience of producing, selling and serving. Our company’s products have been exported to South-east Asia, Russia, UAE and other Middle East countries, Japan, Canada and other countries. If you need, please contact us and we hope you can visit our factories by yourselves.
