Home » Products » Piling Machine » Casing Oscillator

Features of Casing Oscillator:
1. Environment friend and safety pile drilling method (drilling with all casing, no mud).
2. Widely used in different difficult formations where there is a risk of collapse or broken formation, such as quicksand, flowing and fictile soils, high pressure groundwater formations, gravel and detritus-type soils etc.
3. High quality cast in-situ pile and secant pile wall. Large pile sizes with high load capacity the ability to penetrate substantial boulder layers and other obstructions.
4. Socket into hard rock is possible.
5. Permanent liners may be incorporated to protect pile shafts.
6. Depths of up to 60m are attainable.

Application of Casing Oscillator:
Foundation pile, Secant pile wall, Remove of abandoned foundation pile and barrier, river bridges and marine structures.

Casing Oscillator

Drilling Tools: Casing tube, Hammer grab
We are offering Bauer standard casing tubes in double wall and single wall format, as well as the customized single wall casing etc.

The double wall casing tube is available with the following sizes:
Dia.620/540mm; 750/670mm; 880/800mm; 1000/920mm; 1180/1100mm; 1200/1120mm; 1300/1220mm; 1500/1400mm; 1800/1700mm; 2000/1880mm; 2200/2080mm; 2500/2380mm.
There are two kinds of casing shoes, short shoe and long shoe available.

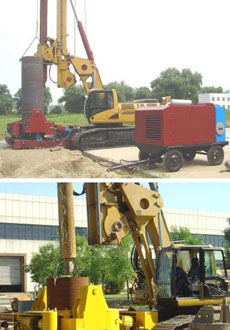

Casing oscillator attached drilling

1. Casing oscillator (rotary rig attached type)

Model No.	1200R	1500R	1800R
Casing diameter	600mm to 1200mm	800mm to 1500mm	1000mm to 1800mm
Oscillating torque	1200KN.m	1900KN.m	2500KN.m
Stroke	450mm	450mm	450mm
Lifting force	1560KN	2100KN	2100KN
Clamping force	1500KN	2100KN	2100KN
Overall dimension	4200x2400x1700mm	4280x2500x1750mm	5200x2900x1750mm
Weight	16000kgs	18000kgs	21000kgs

2. Casing oscillator (Crane attached type)

Model No.	1200F	1500F	1800F
Casing diameter	600mm to 1200mm	800mm to 1500mm	1000mm to 1800mm
Oscillating torque	1200KN.m	1900KN.m	2500KN.m
Stroke	500mm	500mm	500mm
Lifting force	1560KN	2120KN	2120KN
Clamping force	1500KN	2100KN	2100KN
Overall dimension	6500x2400x1700mm	6550x2550x1850mm	7600x2900x1850mm
Weight	18000kgs	22000kgs	25000kgs

3. Hydraulic Power Station

Rated power: 130 KW
Rated pressure: 35MPa
Overall dimension: 3000×1600×2600 mm
Weight:4500 Kg

Huanli Industries is a professional manufacturer and supplier of casing oscillator in China. We offer a variety of manufacture piling machine, such as rotary drilling rig, CFA equipment, soil mixing machine, GPS boring machine, casing oscillator, and diaphragm wall grab ect. We possess 19 years’ experience of producing, selling and serving. Our company’s products have been exported to South-east Asia, Russia, UAE and other Middle East countries, Japan, Canada and other countries. If you need casing oscillator, please contact us and we hope you can visit our factories by yourselves.
