Hydraulic Surface Exploration Core Drilling Rig

Features:

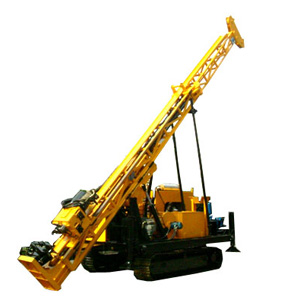

1. The YDX-600L crawler mounted core drilling rig has a long feeding stroke which can save processing time and help to run smoothly, at the same time, it increases efficiency and productivity.
2. The YDX-600L crawler mounted drilling rig works with a high rotary speed and could adjust its speed if needed. It is widely used in small diamond bit core drilling, the large diameter carbide bit core drilling, etc.
3. When boring a slope hole, it is unnecessary to have an extra slope drill tower. It can lift the drill rod in one time.
4. The processing time is greatly shortened thanks to the high quality chassis to make it work conveniently.
5. The main hydraulic parts of the YDX-600L crawler mounted core drilling rig, such as, the hydraulic pumps, hydraulic motors and quick links of the drilling rig are all come from international famous products.
6. The structure of The YDX-600L crawler mounted core drilling rig is various, for example, skid mounted, trailer mounted and crawler mounted are available. Skid mounted form is small and light, so it is easy to assemble. Trailer and crawler mounted with great forms as a whole, can be removed and transported faster. Crawler form is also easy to move and flexible to aim at the hole

Specifications:
1. Working range
(A) Drilling depth with rod diameter NQ: 500 m
(B) Drilling depth with rod diameter BQ: 600 m
2. Power head
(1) Rotary speed / rotational torque
Rotary speed / rotational torque :94~135 Rpm / 3200~2040Nm
Rotary speed / rotational torque:203~289 Rpm / 1490~955 Nm
Rotary speed / rotational torque : 310~441 Rpm / 979~625 Nm
Rotary speed / rotational torque:663~945 Rpm / 457~292Nm
Feeding stroke:3500 mm
Thrust Force: 40 kN
Lifting Capability : 58kN
3. Hydraulic winch
Main winch Hoistingl capacity : 54 KN
Wire line winch Hoisting capacityl :2 KN
4. Mast (derrick) height (from crown to ground level) : 8.5m
5. Diesel Engine (Power/Rotate Speed) : 75kw / 2200rpm
6. Total weight of the rig: 6500kg
7. Mud Pump (Optional): BW-150
8. Chassis of Drilling Rig: Skid / Trailer / Crawler Mounted
(According to customer’s requests)

Application:
YDX-1200 hydraulic surface exploration core drilling rig is widely applied in diameter diamond drilling of metal and nonmetal solid exploration. It is also suitable to carbide bit core drilling. The YDX-1200 drilling rig is used to bore both vertical and inclined holes. It is commonly used in engineering boreholes of hydrology water wells, petroleum or gas field exploration, dike & dam cement grouting, tunnel ventilation and water draining, etc as well.

Features:
YDX-1200 core drilling rig is a head core rig fully driven hydraulic. Compared to the traditional mechanic driven rig with hydraulic power, it is characterized:
1. The YDX-1200 core drilling rig works with high rotary speed, reasonable rotary speed range. Therefore, it’s appropriate for small diameter diamond and large diameter carbide bit core drilling.
2. It has a long stroke which helps to lower the rod reversion frequency, get rid of coring block, and increase productivity.
3. The YDX-1200 hydraulic surface exploration core drilling rig is simple and light, and convenient to assemble and remove.
5. There is no need to have a special inclined tower when drilling inclined holes. It could raise two rods at one time.
6. No specialized drill tower is needed to allocate for it’s already save preparation time.
7. There are several kinds of chassis, like Skid / Trailer / Crawler Mounted.

Specifications:
1. Working range
(A) Drilling depth with rod diameter NQ (75): 1200 m
(B) Drilling depth with rod diameter HQ (95) : 850 m
(C) Drilling depth with rod diameter PQ (114): 600
(D) Drilling hole inclined angle: 0～-90°
2. Drill head output
(1).Rotary speed and rotational torque
a. Rotary speed / rotational torque: 113-165Rpm / 5270-3620Nm
b. Rotary speed / rotational torque: 237-345Rpm / 2520-1733 Nm
c. Rotary speed / rotational torque: 437-636 Rpm / 1367-940Nm
d. Rotary speed / rotational torque: 750-1100 Rpm / 795-546Nm
2. Feeding stroke: 500 mm
3 Feeding Force: 55kN
4. Lifting Force: 108kN
3. Hoist
Main hoistl
lifting capacity: 75 KN
Lifting speed: 40 m/min
Wire line hoistl
lifting capacity: 12 KN
Lifting speed:120m/min
4. Engine (Diesel) rated power: 125kw
5. Total weight of the machine
Total weight of YDX-1200T: About 7800kg
Total weight of YDX-1200T: About 6600kg
6. Mud pump (optional): BW-150
7. Chassis of Drilling Rig: Skid / Trailer / Crawler Mounted
(According to customer’s requests)

Application:
YDX-200 hydraulic surface exploration core core drilling rig is mainly used in conventional diamond core drilling in metal and un-metal mine, coal and oil field, gas field etc. It can be uses to drill vertical and inclined holes through soft, hard, broken and fractured formation by wet / dry or flush method.

Features:
1. The YDX-200 core drilling rig is various in rotary speeds: from high to low. It is also appropriate for various drilling methods such as carbide bit drilling and diamond bit drilling etc.
2. Entirely hydraulic drive ensures continuous gearshift, greater drilling capability, wide range application, high work efficiency especially for wire-line core drilling.
3. YDX-200 hydraulic surface exploration core core drilling rig acquires various forms: skid mounted, trailer and crawler mounted chassis. Skid mounted form has the advantages of easy to move, small and light, so it assures lineate remote operation as well. Trailer and crawler mounted chassis are with good integrative forms to make it remove and transport easily. Crawler mounted is also easy to move and flexible to direct borehole location.
4. A series of optional gauges is arranged with drilling rigs, such as pressure gauges, oil pressure gauges, rotary speed and feeding speed gauges etc.
5. YDX-200 core drilling rig is a fully hydraulic-drive power head core drilling rig. Its main hydraulic components: hydraulic motor, pump, operating valve etc, adopted world-famous brand goods to provide stable performance, reliable product quality and long service life.

Specifications:
1. Working range
(A) Drilling depth with rod diameter NQ: 200 m
(B) Drilling depth with rod diameter BQ: 300 m
2. Power Head
(1) Rotational torque and rotational speed (diesel power)
a. Rotational torque / rotational speed: 1050 RPM / 215 Nm
b. Rotational torque / rotational speed: 585 RPM / 380 Nm
c. Rotational torque / rotational speed: 270 RPM / 810 Nm
d. Rotational torque / rotational speed: 145 RPM / 1500 Nm
2 Feeding stroke: 1800 mm or 3500mm
3. Thrust Force: 30 kN
4. Lifting Capability: 50 kN
3. Hydraulic winch
Mainl winch Hoisting capacity: 32 KN
Wire line winchl Hoisting capacity: 12 KN
4. Mast height (from crown to ground level): 8.5m (3500mm Feeding Stroke)
5. Power
Diesel Engine: 75kw / 2200rpm
Electromotor: 22kw / 1500rpm
6. Total weight of the machine
Total weight of YDX-200L (Crawler Mounted): About 4000 kg
Total weight of YDX-200T (Trailer Mounted): About 3000 kg
7. Mud pump (Optional): BW-150
8. Chassis of Drilling Rig: Skid / Trailer / Crawler Mounted
(According to customer’s requests)

Application:
YDX-300 type core drilling rig is mainly used in conventional diamond core drilling like metal and un-metal mine, coal field, gas field etc. It can drill holes from vertical to elevation angle from soft, hard and broken or fractured formation through wet / dry or flush method.

Features:
1. YDX-300L crawler core drilling rig is various in rotary speed and is suitable for various drilling applications such as carbide bit drilling and diamond bit drilling etc.
2. Entirely hydraulic drive ensures continuous gearshift, greater drilling capability, wide range application, high work efficiency especially for wire-line core drilling.
3. The structure of YDX-300L crawler core drilling rig is in various forms, like skid mounted, trailer and crawler mounted chassis. Skid mounted form is small and light, so it assures good disassemblies, convenient installation and transportation and lineate remote operation. Trailer and crawler mounted chassis with comprehensive forms can be used to make it remove and transport faster. Crawler mounted is flexible to direct borehole location.
4. A series of optional gauges is arranged with drilling rigs, such as pressure gauges, oil pressure gauges, rotary speed and feeding speed gauges etc
5. YDX-300 is a fully hydraulic-drive power head core drilling rig. Its main hydraulic components: hydraulic motor, pump, operating valve etc. It imported world-famous brand goods to ensure excellent performance, reliable product quality and longer service life.

Specifications:
1.Working range
(A) Drilling depth with rod diameter NQ: 300 m
(B) Drilling depth with rod diameter BQ: 400 m
2. Power Head
(1) Rotational torque and rotational speed (Diesel Engine)
a. Rotary speed / rotational torque: 120-160 Rpm / 2150-1560 Nm
b. Rotary speed / rotational torque: 230-310 Rpm / 1120-740Nm
c. Rotary speed / rotational torque: 80-650 Rpm / 560-350Nm
d. Rotary speed / rotational torque: 900-1150 Rpm / 310-200 Nm
(2) Feeding stroke: 1800 or 3500 mm
(3) Thrust Force: 35 kN
(4)Lifting Capability: 50 kN
3. Hydraulic winch
Main winch Hoistingl capacity: 32 KN
Wire line winch Hoistingl capacity: 12 KN
4. Mast height (from crown to ground level): 8.5 m (3500mm Feeding Stroke)
5. Power
Diesel Engine: 75 kW / 2200rpm
Electromotor: 30 kW / 1500rpm
6. Total weight of the machine
Total weight of YDX-300L (Crawler Mounted): About 5000kg
Total weight of YDX-300T (Trailer Mounted): About 3100kg
7. Mud pump (Optional): BW-150
8. Chassis of Drilling Rig: Skid / Trailer / Crawler Mounted
(According to customer’s requests)
