GPS Boring Machine

Technical Specification of GPS Boring Machine

Model	GPS-10	GPS-15	GPS-18	GPS-20
Max drilling dia. (mm)	1000	1500	1800	2000
Drilling depth(m)	50	60	100	100
Rotary table
torque(KN.M)	6	20	26	30
Main hoist capacity (Single rope)(KN)	30	30	30	30
Auxiliary hoist capacity (Single rope)(KN)	20	20	30	30
Mast
Rated load(hook)(KN)	177	180	180	180
Effective height (m)	9	8	9	9
Drilling rig power (KW)	30	30	37	37
Weight of drilling (ton)	8.4	10	12	15
Overall dimensions(M)	5.0x2.9x10.3	4.7x2.2x10	4.7*2.2*10	5.7*2.4*9.3

List of tools and accessory

Illustrations:

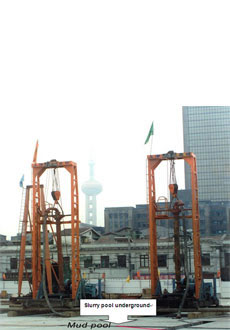

The slurry pool is just under boring machine, it is a place of sedimentation which deposit the mud come out from the hole, the mud will be pump up into the faucet on the top of Kelly bar after sedimentation. This is a complete circulation while boring.

For your info, there is another mud circulation in reverse direction, called reverse circulation. We have to equip another kind of pump called reverse circulation pump set, to running in reverse direction. The advantage of reverse circulation is that this pump can suck the boring hole and small rock block etc can be removed from the hole.

Huanli Industries is a professional manufacturer and supplier of GPS boring machine in China. We offer a variety of manufacture piling machine, such as rotary drilling rig, CFA equipment, soil mixing machine, GPS boring machine, casing oscillator, and diaphragm wall grab ect. We possess 19 years’ experience of producing, selling and serving. Our company’s products have been exported to South-east Asia, Russia, UAE and other Middle East countries, Japan, Canada and other countries. If you need, please contact us and we hope you can visit our factories by yourselves.
