The diaphragm wall grab is used to break the rock and take out soil and gravel inside of casing after inserted the casing in the ground by oscillator, at large bore cast-in-place concrete pile work.

High construction efficiency, powerful shutting force and good perpendicularity for the diaphragm wall construction.

The diaphragm wall grab may also be installed with to maintain and repair the wall anytime during working.
The advanced electronic surveying system can accurately demonstrate the depth and the position direction of the grab on the screen, as accurate as to 0.01 degree.

Diaphragm wall grab which is rope suspended and operated hydraulically.

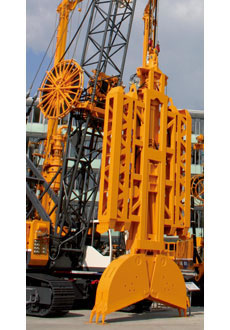

Diaphragm Wall Grab

The 80~120 ton closing force and 8~9 second shovel opening/closing time are activated by a cylinder which is installed inside of base body. High closing forces in combination with the possibility of multiple grabbing at the trench bottom result in high excavation rates even in dense and very hard soil strata.

Wall grab information
Width (mm)	Volume (Liter)
300	--
350	400
400	500
500	650
600	800
800	1100
1000	1400
1200	1700

SG series diaphragm wall grab’s features advanced technology, excellent performance, reliable quality and easy handing. It is a multifunctional foundation construction machine of high efficiency.

Structure and Main Component
1. Mast head
2. Upper mast
3. Lower mast
4. Free fall winch
5. Wire rope
6. Rated engine
7. Hydraulic hose
8. Hydraulic hose reel
9. Cylinder
10. Pylley6 block
11. Drum of inclinometer cable
12. Cable

Huanli Industries is a professional manufacturer and supplier of diaphragm wall grab in China. We offer a variety of manufacture piling machine, such as rotary drilling rig, CFA equipment, soil mixing machine, GPS boring machine, casing oscillator, and diaphragm wall grab ect. We possess 19 years’ experience of producing, selling and serving. Our company’s products have been exported to South-east Asia, Russia, UAE and other Middle East countries, Japan, Canada and other countries. If you need, please contact us and we hope you can visit our factories by yourselves.
