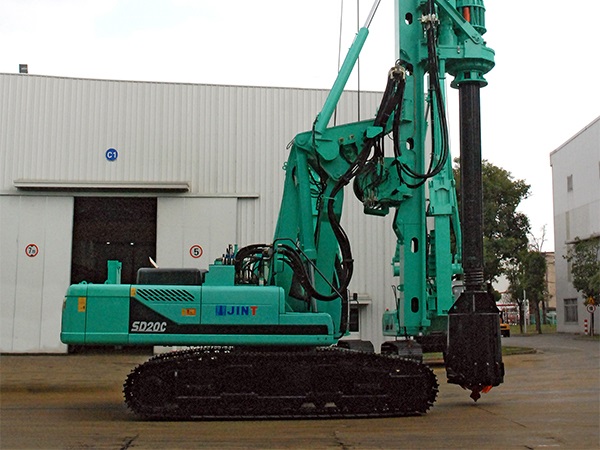

Hydraulic Rotary Drilling Rig

Hydraulic Rotary Drilling Rig

Product feature and appliance:Our Hydraulic rotary drilling rig is a type of heavy piling machine which use hydraulic motor power to drive the rotary driver (KDK) on the mast, it can rotate the kelly bar and drilling tools to break and remove the rock or soil from the pile hole. With the interlock type Kelly bar, it can give pressure directly to the drilling tools to increase the drilling efficiency.

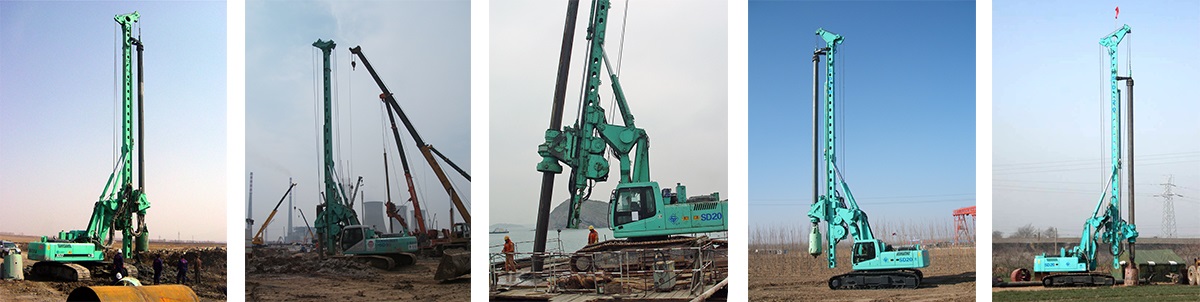

This machine is used to build bridge foundation pile, high raised building foundation pile, secant pile, elevated road foundation pile and etc.
Suitable for the geo condition: rock hardness from the medium weathered rock up to less weathered rock, and it can work in comprehensive geo conditions which combined with the sand, rock and scree (Cobble) etc.
Man powers: one operator (captain), two labor forces for moving material and supporting works.
Supporting equipment:Excavator required to move the tools and earth; desander is optional depend on whether you want to recycle the mud.
Advantages: Multi-functional drilling machine with modern design, very adaptable to various piling work with different pilling tools, such secant wall, CFA drilling, casing drilling and etc.
Disadvantage: high capital investment, advanced machine with complex mechanism and parts, the running cost and maintenance is on the high side.

Inquiry

Technical Specification

Base Machine
Model No.	SD20C	SD25	SD25W	SH30	SH30W	SH36	SH36W
Engine
Diesel	Cummins C8.3	QSL9	QSL9	Cummins QSM11-C		Cummins QSM11-C
Diesel engine power(kw)	196	221	221	263	263	298	298
Max.rotation speed(rpm)	1900	1850	1850	1900	1900	1900	1900
Hydraulic system
Hydraulic system flow(L/min)	2*250	2*288	2*288	2*380	2*380	2*380	2*380
Hydraulic system pressure(bar)	350	330	330	330	330	330	330
Rotary head
Rotary torque(kN.m)	200	250	250	286	286	360	360
Rotary speed(rpm)	8--30	8--30	8--30	6--30	6--30	6--30	6--30
Chassis
Extendable chassis lower part	SD20C.07.00	JT70	JT70	R455LC-7 JT80		JT90	JT90
of triple grouser track shoes(mm)	700	800	800	800	800	800	800
Chassis length(mm)	5400	5680	5680	5680	5680	6020	6020
Chassis (contraction/extension)(mm)	3150-4300	3200-4300	3200-4300	3300-4400	3300-4400	3450-4600	3450-4600
Towing force(kN)	430	500	500	500	500	650	650
Crawler speed(km/h)	1.5	1.5	1.5	1.8	1.8	1.5	1.5
Transport Weight	SD20C	SD25	SD25W	SH30	SH30W	SH36	SH36W
Weight of base machine,support,and bottom mast assembly	57000	65500	65500	64450	65000	86500	88500
Wherein:counter weight(kg)	8300	12000	12000	15000	15000	23500	23500
Upper mast,mast head(kg)				5000	4000	7500	6500

Drilling parameter
Model No.	SD20C	SD25	SD25W	SH30	SH30W	SH36	SH36W
Dimensions(mm)
L1	19860	19500	19500	21280	21280	24500	24500
L2	8140	8500	12900	9059	18200	9000	13375
L3	314	2900	2900	3359	3800	3000	3375
Drilling diameter(mm)
uncased	2000	2000	2000	2500	2300	2500	2300
cased	1500	1700	1700	2000	1800	2000	1800
Length of case(m)
W O oscillator	H-0.6	H-0.6	H-0.6	H-0.6	H-0.6	H-0.6	H-0.6
With oscillator	H-1.8	H-1.8	H-1.8	H-1.8	H-1.8	H-1.8	H-1.8

Technical Data
Model No.	SD20C	SD25	SD25W	SH30	SH30W	SH36	SH36W
Drilling tower
of tower(mm)	21570	21500	21500	23500	23500	27400	27400
Weight of base machine(without drilling tools)(kg)	57000	65000	65500	75000	76000	94000	95000
Crowd cylinder
Cylinder stroke(mm)	5000	5700	10000	5700	11000	6000	11000
Cylinder pressure force(kN)	200	250	250	250	250	300	300
Cylinder pulling force(kN)	200	250	250	250	250	300	300
Main winch
Single line pull(kN)	200	250	250	250	250	300	300
Rope diameter(mm)	26	28	28	30	30	36	36
Line speed max.(m/min)	60	60	60	60	60	60	60
Auxillary winch
Single line pull(kN)	75	75	75	75	75	75	75
Rope diameter(mm)	18	18	18	18	18	18	18
Line speed max.(m/min)	45	50	50	45	45	45	45
