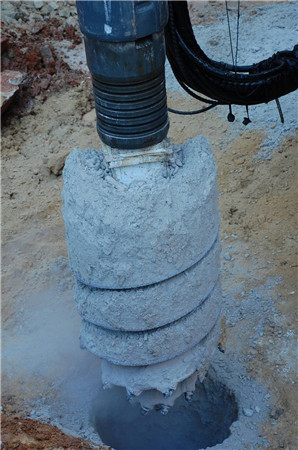

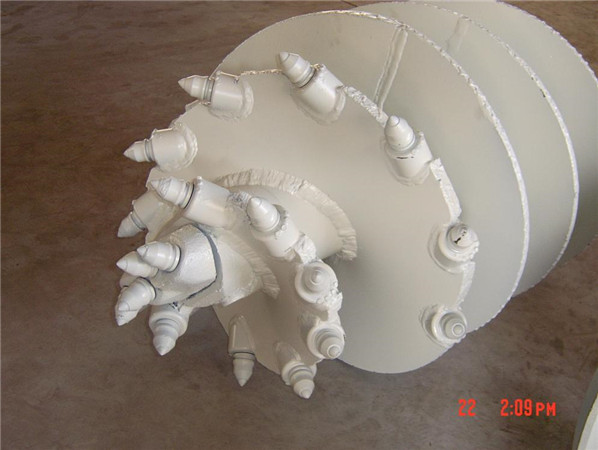

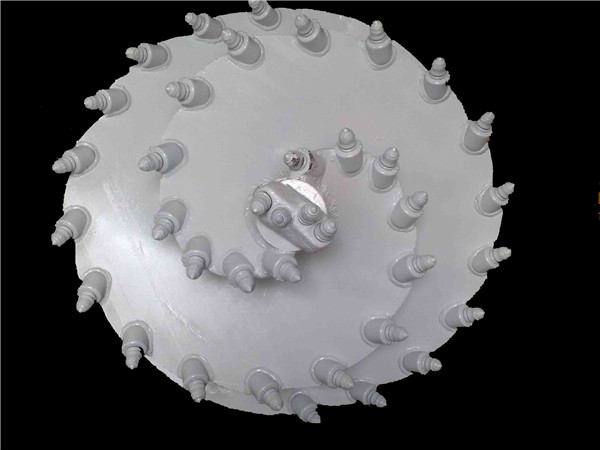

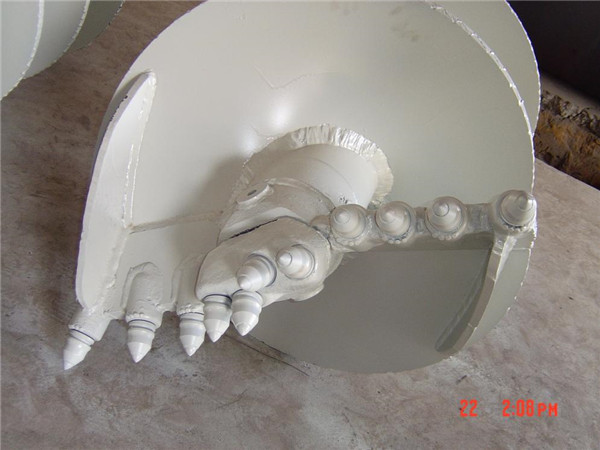

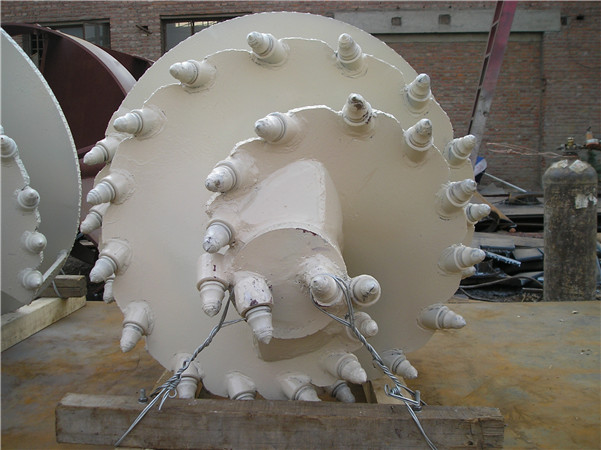

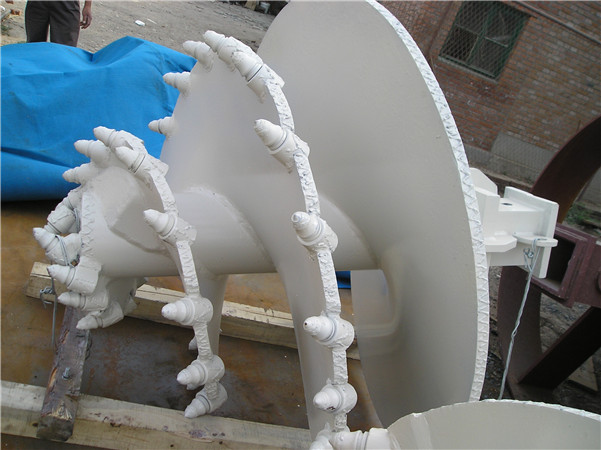

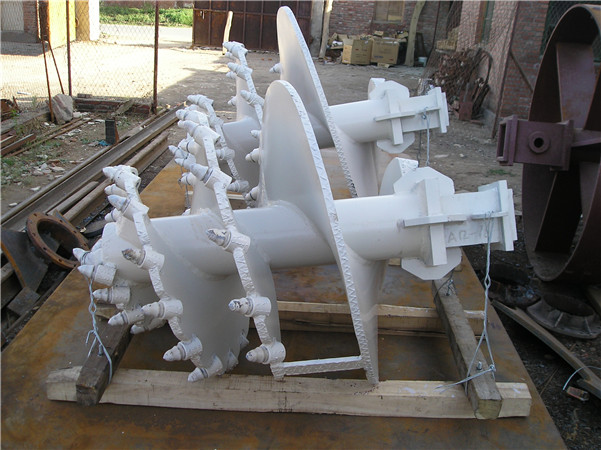

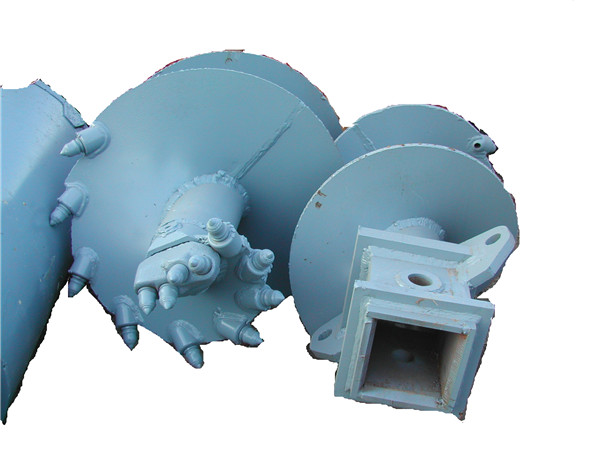

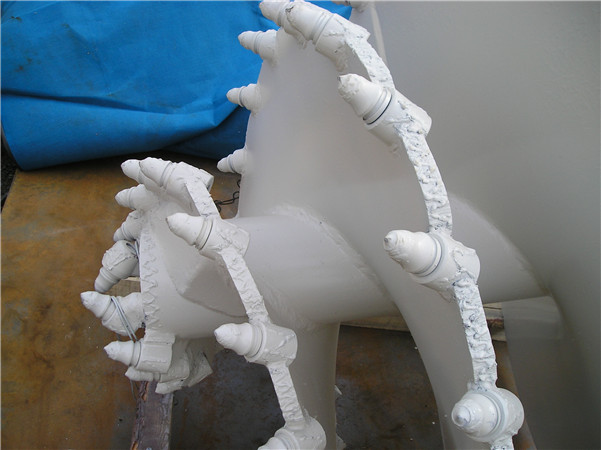

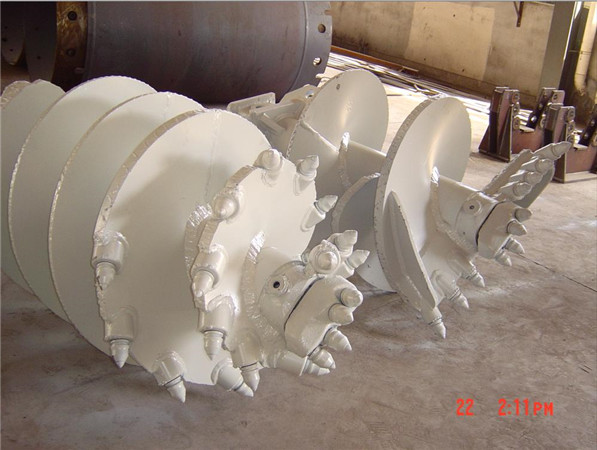

The rock auger is perfectly fit for the Kelly drilling in foundation technology, which consisted of the Kelly box, core pipe, flight, wear parts (teeth) and pilot.
Suitable for: sand, sand stone and gravel upto to hard rock.

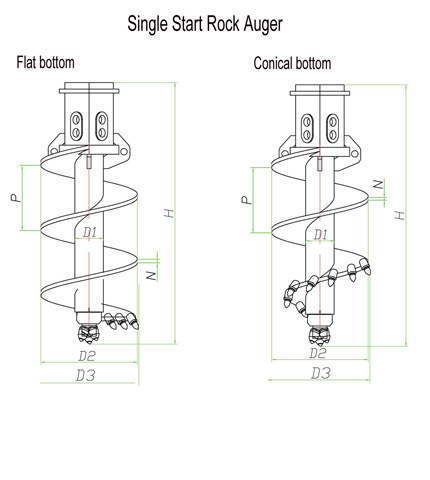

1.Single start/single cutting rock auger.Flat bottom and conical bottom is available for your choice

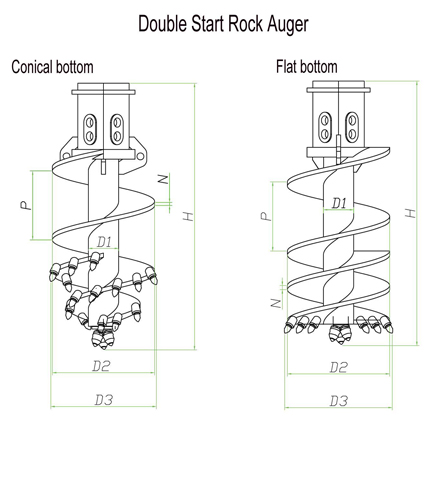

2.Double start/double cutting rock auger.Flat bottom and conical bottom is available for your choice
Appliance
Tool type
|
D3 WorkingDiameter(mm) |
D2 Flightdia.(mm) |
D1 Pipedia(mm) |
P Pitch (mm) |
N Flight thickness |
H Length (mm) |
|
600 |
560 |
180 |
400 |
30/20 |
2100 |
|
800 |
760 |
219 |
500 |
30/20 |
2100 |
|
1000 |
960 |
219 |
500 |
30/20 |
2100 |
|
1200 |
1160 |
219 |
500 |
30/20 |
2100 |
|
1500 |
1460 |
219 |
500 |
30/20 |
2100 |
|
1800 |
1760 |
219 |
500 |
30/20 |
2100 |
|
2000 |
1960 |
219 |
500 |
30/20 |
2100 |
|
2200 |
2160 |
219 |
500 |
30/20 |
2100 |
|
2500 |
2460 |
219 |
500 |
30/20 |
2100 |
