Product feature and appliance:

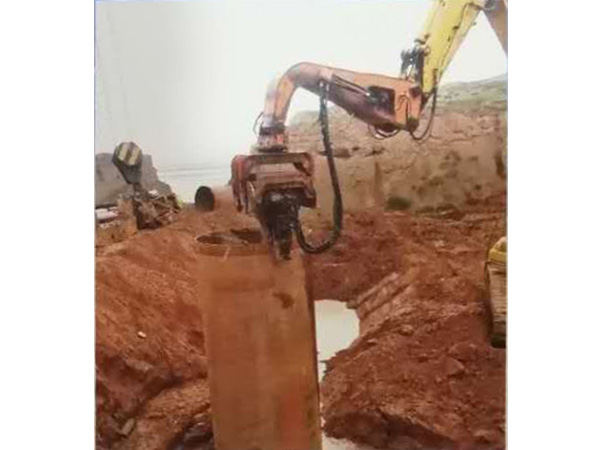

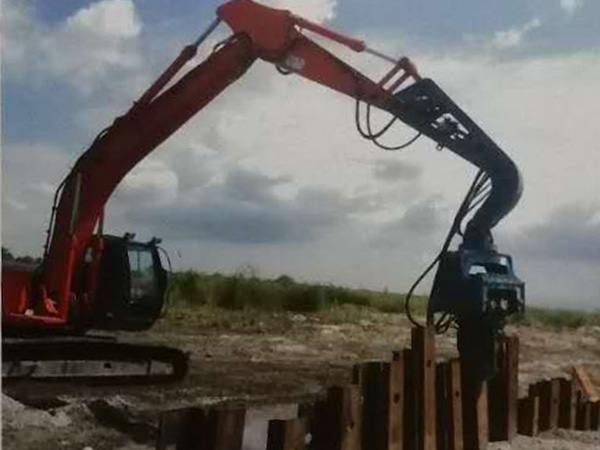

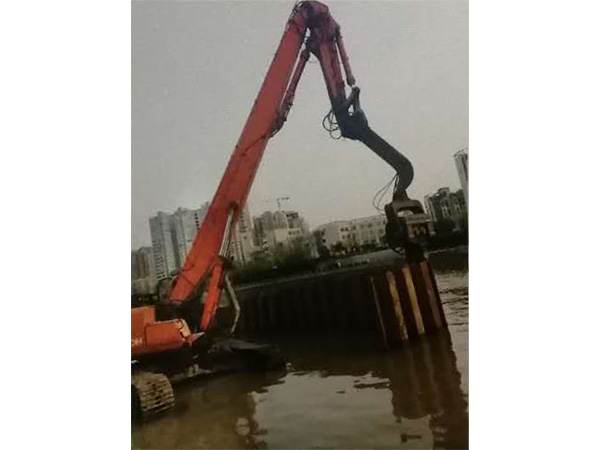

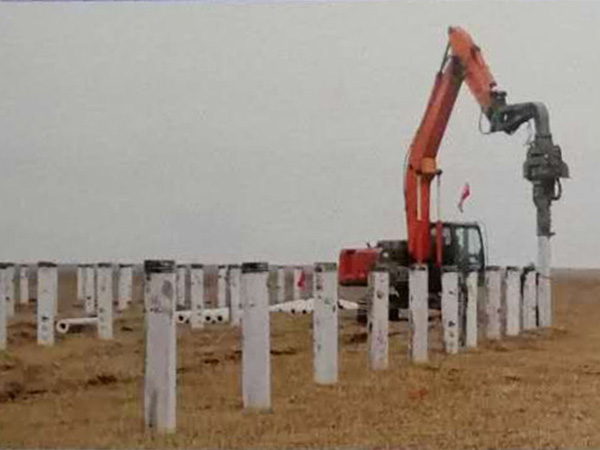

Our vibro hammer is a type of hydraulic vibro hammer which use hydraulic power from excavator to drive the steel sheet pile, casing tube, concrete square pile, steel post and other template or permanent pile or post.
Important: This machine has to work with the excavator
Suitable for the geo condition:Sandy soil, wet soil, solid and hard ground is not suitable.
| Model | HV-90 | HV-100 | HV-150 | HV-250 | HV-300 |
| Dimension(mm) A | 1230 | 1230 | 1640 | 2170 | 2170 |
| Dimension(mm) B | 900 | 960 | 1030 | 1245 | 1245 |
| Dimension(mm) C | 560 | 570 | 660 | 737 | 737 |
| Rotating speed (RPM) | 2500 | 2500 | 2500 | 2800 | 3000 |
| Exciting force(KN) | 96 | 117 | 151 | 387 | 471 |
| Hydraulic system operation pressure (Bar) | 280 | 280 | 280 | 300 | 300 |
| Hydraulic system mini flow rate (Lpm) | 80 | 100 | 120 | 175 | 240 |
| Weight (kg) | 720 | 810 | 1120 | 1550 | 1650 |
| Excavator weight (ton) | 6-7 | 7-12 | 12-15 | 20-24 | 24-30 |
| Clamp weight (kg) | Type A:300kgs, B:350kgs, C:400kgs | ||||
| Arm weight (kg) | Type A:700kgs, B:850kgs, C:950kgs | ||||
| Model | HV-330 | HV-350 | HV-400 | HV-450 | HV-500 |
| Dimension(mm) A | 2190 | 2190 | 2310 | 2310 | 2310 |
| Dimension(mm) B | 1255 | 1255 | 1460 | 1460 | 1460 |
| Dimension(mm) C | 880 | 880 | 980 | 980 | 980 |
| Rotating speed (RPM) | 3000 | 3000 | 2600 | 2600 | 2600 |
| Exciting force(KN) | 500 | 524 | 544 | 568 | 618 |
| Hydraulic system operation pressure (Bar) | 300 | 300 | 300 | 300 | 300 |
| Hydraulic system mini flowrate (Lpm) | 270 | 270 | 280 | 300 | 320 |
| Weight (kg) | 1650 | 1800 | 2000 | 2050 | 2100 |
| Excavator weight (ton) | 30-35 | 35-40 | 38-42 | 40-45 | 48以上 |
| Clamp weight (kg) | Type A:300kgs, B:350kgs, C:400kgs | ||||
| Arm weight (kg) | Type A:700kgs, B:850kgs, C:950kgs | ||||
