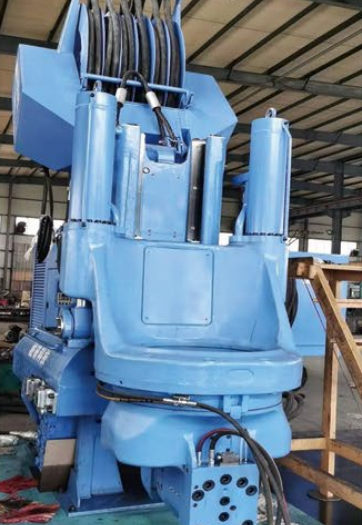

The pile drive technology was innovated by Giken Japan, i.e. “Reaction based hydraulic pile jacking”. This machine which specially used to drive sheet pile without extra supporting equipment. Comparing to the original piling technology, it has a specially advantage of noise free, no vibration, no working platform required and especially environment-friendly.
The application widely used for the construction of watertight retaining wall, river and coastal protection wall, Flood defence wall, Berth,
|

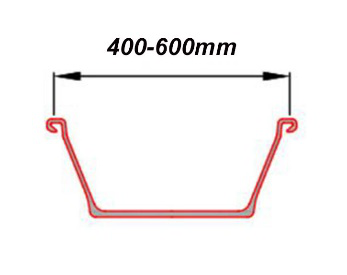

Sheet Pile description |
|||
|
Hot Rolled Steel Sheet Pile, SP series, (SP-II, SP-III, SP-IV, SP-V etc) Applied standard: Japanese standard JISA 5523, 5528; Korea standard KS F 4604; Chinese standard GB/T 20933 |
|||
|
Sheet pile (Width) |
600mm |
500mm |
400mm |
|
|
|||
|
Technical Specification of the machine |
|
|
Press speed |
1.1—17.0m/min |
|
Lift speed |
1.0—15.5m/min |
|
Movement |
Hydraulic self-propelled |
|
Press force |
1230 KN (Max.) |
|
Lift force |
1500 KN (Max.) |
|
Travel of one press |
850mm |
|
Operation method |
Remote control operation |
|
Weight of main body |
10Ton |
|
Machine width |
1271mm |
|
Machine height |
2651mm |
|
Suitable sheep pile |
U type, 400-600mm as above mentioned |
|
Power pack |
||
|
Engine |
Diesel Turbine engine |
|
|
Rated output |
High power mode |
247KW/1800min |
|
Eco mode |
210KW/1600min |
|
|
Fuel tank |
600L |
|
|
Hydraulic oil tank |
700L |
|
|
Move speed |
1.8km/h |
|
|
Tool Selection and Working Technic |
|
|
SPT N value |
Range < 25 Geo condition: Clay, sand |
|
Optional device required |
Water jet cutter |
|
Jet pressure |
|
|
Standard working depth |
|
|
SPT N value |
25 up to 200 Geo condition: sand, soft rock |
|
Optional device required |
Continuous Flight Auger |
|
Standard working depth 24M |
|
|
Weight is 14400kgs |
|
